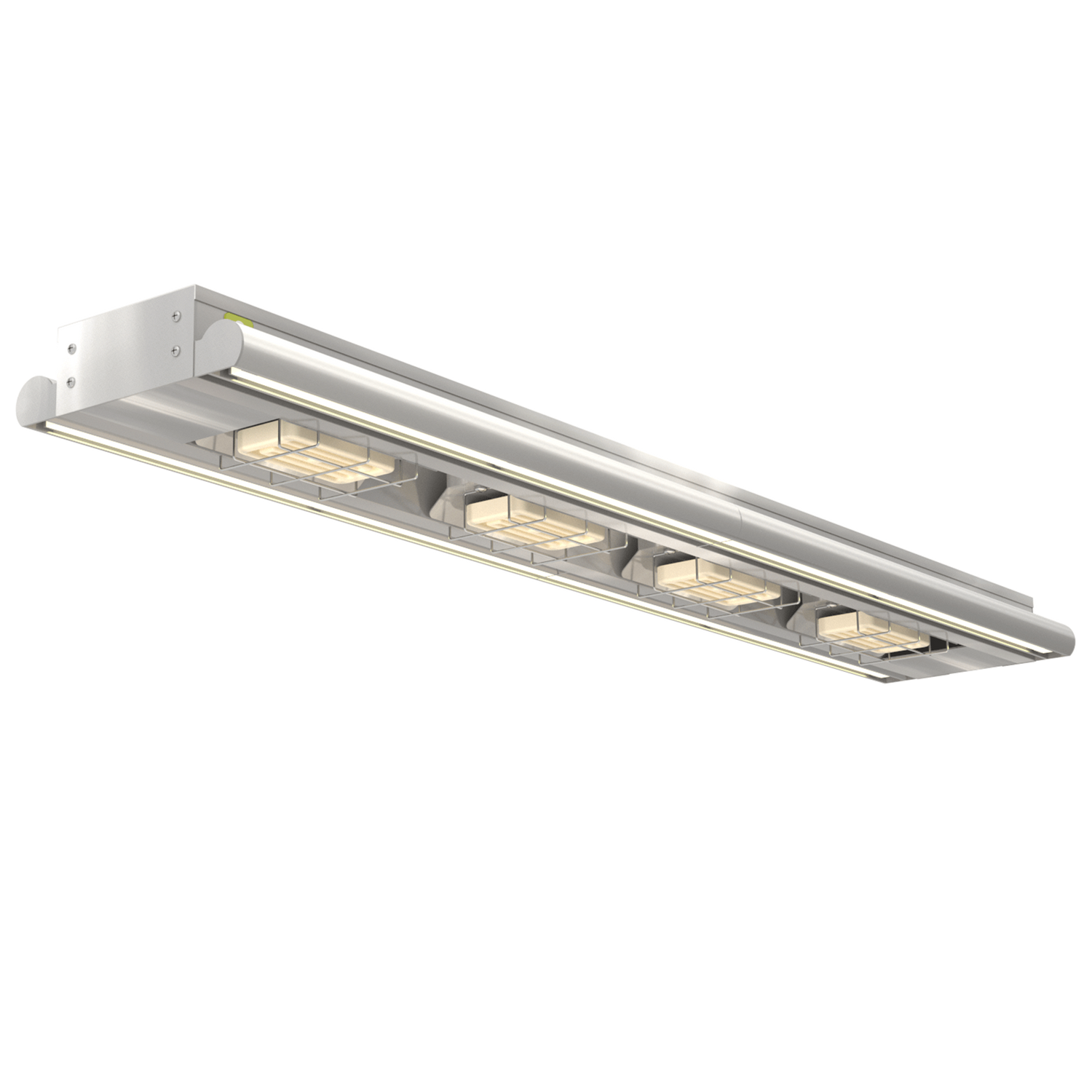

OTS HEAT BAR (OTSHB)
| Model | W mm | D mm |
H mm |
Temp | Plugs | Current A |
Weight kg |
Energy Cons kWh/24h |
|---|---|---|---|---|---|---|---|---|
|
OTSHB12 |
1200 | 190 | 65 | 45~75°C | 10A (220-240V) | 5.2 | 19 | 28.8 |
| OTSHB15 | 1500 | 190 | 65 | 45~75°C | 10A (220-240V) | 6.5 | 23 | 36 |
| OTSHB18 | 1800 | 190 | 65 | 45~75°C | 15A (220-240V) | 8.6 | 27 | 48 |
IN SERIES OTS HEAT BAR (OTSHBS)
| Model | W mm | D mm | H mm | Temp | Plugs | Current A |
Weight kg |
Energy Cons kWh/24h |
|---|---|---|---|---|---|---|---|---|
| OTSHB12S | 1200 | 190 | 65 | 45~75°C | Calculated based on the number and sizes of HEAT BARS being run in series | 5.2 | 19 | 28.8 |
| OTSHB15S | 1500 | 190 | 65 | 45~75°C | 6.5 | 23 | 36 | |
| OTSHB18S | 1800 | 190 | 65 | 45~75°C | 8.6 | 27 | 48 | |
| OTSEC | Control box for in series HEAT BARS | |||||||
